imc C-SERIES: Device Options

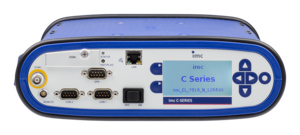

The imc C-SERIES is available in two housing options: CS and CL.


CS: up to 16 analog measurement inputs depending on model CL: up to 32 analog measurement inputs depending on model

In addition, all models come standard with:

  • 8 digital inputs
  • 8 digital outputs
  • 4 analog outputs
  • 4 counter inputs for capture of RPM, displacements, etc.
  • Dual-node CAN-FD interface

Comprehensive, intelligent trigger functions; limit monitoring; minimum, maximum and mean value storage; as well as internal signal processors (Online FAMOS) for extensive real-time computing and control functions

Get price details

Related links

  • Data Sheets
  • Manuals

Brochure

imc C-SERIES (PDF)

All-Purpose & Powerful: CS-7008 & CL-7016

The universality of the CS-7008 and CL-7016 is hard to beat. Whether measuring voltage, current, strain, thermocouples or current fed IEPE/ICP sensors, these instruments can measure pretty much everything.

CS-7008

CL-7016


  • 8 analog, universal measurement inputs
  • For the measurement of bridges and strain gauges, current and voltage, thermocouples, PT100, acceleration (ICP)
  • 100 kHz sampling rate / 48 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16-bit resolution (with internal 24-bit processing)
  • 16 analog, universal measurement inputs
  • For the measurement of bridges and strain gauges, current and voltage, thermocouples, PT100, acceleration (ICP)
  • 100 kHz sampling rate / 48 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16-bit resolution (with internal 24-bit processing)

Multi-channel & Affordable: CS-1016

The imc CS-1016 is an affordable instrument for tasks related to voltage and current measurements with sampling rates up to 20 kHz per channel. The input channels are differential and equipped with individual signal conditioning including filters.

CS-1016




  • 16 analog, differential measurement inputs
  • for measuring voltage and current signals
  • 20 kHz sampling rate / 6.6 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16 Bit resolution

High-Resolution, Flexible Voltage Measurement: CS-1208

The imc CS-1208 device is an 8 channel high-resolution instrument for tasks related to voltage and current measurements with sampling rates up to 100 kHz per channel. These devices are especially well suited for demanding voltage measurements in up to 50 V, as well as in low level and low noise ranges.

CS-1208




  • 8 analog, differential measurement inputs
  • For measuring voltage and current signals
  • 100 kHz sampling rate / 48 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16 Bit resolution(with 24 Bit internal processing)

High-Resolution, Flexible Voltage Measurement w/Isolated Inputs: CS-4108 & CL-4124

The CS-4108 and CL-4124 devices are particularly suitable for measurement tasks in environments that are not well defined in terms of electric potentials, such as test rigs or largescale machinery. The input channels are galvanically isolated, differential and equipped with individual signal conditioning including filters. They allow voltage measurement up to 60 V as well as temperature mode (thermocouple, PT100)

CS-4108

CL-4124


  • 8 analog, differential measurement inputs
  • For measuring voltage and current signals, thermocouples, PT100
  • 100 kHz sampling rate / 11 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16 Bit resolution (with 24 Bit internal processing)
  • 24 analog, differential measurement inputs
  • For measuring voltage and current signals, thermocouples, PT100
  • 100 kHz sampling rate / 11 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16 Bit resolution (with 24 Bit internal processing)

Affordable Measurements w/Strain Gauges: CS-5008 & CL-5016

The CS-5008 and CL-5016 devices are equipped with bridge amplifiers for strain gauge measurements. They can be configured via software for quarter, half and full bridge mode and directly convert acquired signals for the various setups into stress and strain.

CS-5008

CL-5016


  • 8 analog, differential measurement inputs
  • For measuring w/strain gauges & bridges, voltage and current signals
  • 100 kHz sampling rate / 5 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16 Bit resolution(with 24 Bit internal processing)
  • 8 analog, differential measurement inputs
  • For measuring w/strain gauges & bridges, voltage and current signals
  • 100 kHz sampling rate / 5 kHz band width per channel
  • Aggregate sampling rate 400 kHz
  • 16 Bit resolution(with 24 Bit internal processing)
