Powerful CAN modules for test stand, vehicle and industrial applications

Whether test stand, on-board vehicle application or industrial applications – when time-synchronous, dynamic or decentralized acquisition of large channel counts is required – the powerful imc CANSAS modules are ideal.

Equipped with high-precision measurement amplifiers, imc CANSAS modules allow for direct connection to all typical sensors and signals in the mechatronic environment. The digitized measurement signals are output as CAN messages and can be read and recorded by any data acquisition, automation or control system with a CAN interface. imc BUSDAQflex is the perfect choise for CAN data logging: it can directly be connected with a simple click.

Request price quote

7 questions for qualified feedback

Brochure

imc CANSAS (PDF)

At a glance

  • Universal data acquisition and I/O modules for all relevant sensors and signals in mechatronics
  • Distributed or centralized operation
  • Click-mechanism connects modules electrically and mechanically into one unit
  • Easily integrates into every CAN-based testing environment
  • Configuration software included: allows you to export the module configuration in standard DBC format
  • Three different module series: suitable types for every environment and application

The appropriate series for every application

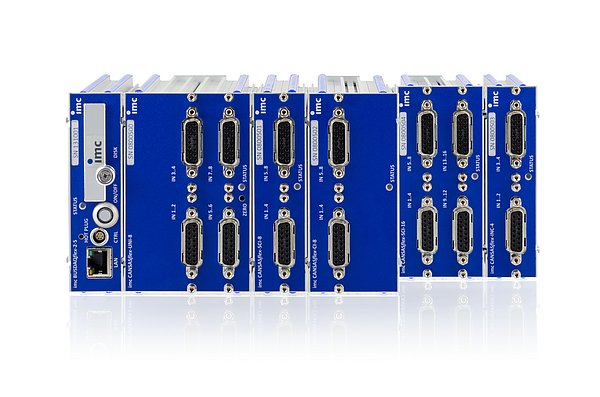

The versatile imc CANSASflex series

Modular CAN modules

For test stand and mobile applications on machinery, industrial installations and vehicles

  • Wide selection of modules for all typical sensors and signals
  • Universal amplifier for mixed-signal testing
  • Clever housing design: mobile operations as well as use in 19" rack
  • Synchronization across multiple modules
  • Life calculated result channels directly in the module like statistics and filter
  • Varieties of connector solutions: DSUB, LEMO, ITT Veam, BNC, thermocouple, ...
  • Mechanically and electrically connected modules without tools or cabling (click-mechanism)

Specialty modules

Measurement modules for high-isolated temperature measuring up to 800 V

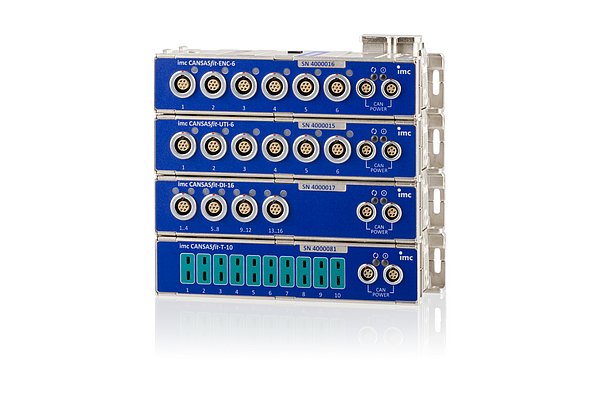

The compact imc CANSASfit series

CAN modules for mobile testing

For mobile testing on vehicles, machinery or facilities

  • Measurement modules for voltage/current, temperature, frequency
  • Compact design: 153 x 52 x 38 mm
  • Light-weight: 260 g
  • Robust: IP65 protection rating, MIL STD-810F
  • Operates from -40° bis +125° C, condensation allowed
  • Wide input voltage range from 7 V .. 50 V DC
  • High resolution: 24 bit
  • Click-mechanism connects modules electrically and mechanically into one unit - without tools or cabling


Gateways

Gateway imc CANSAS-SENT

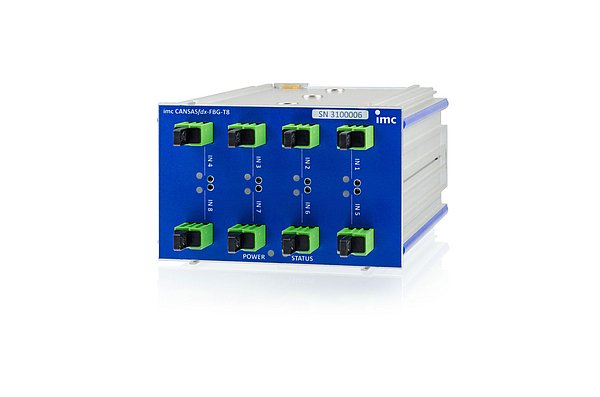

Fiber optic CAN measurement module

for fiber-optic temperature measurements in HV-environments

  • 8 inputs for FBG temperature sensors
  • 1000 Hz sampling rate per channel
  • 100 Hz bandwidth
  • Resistant against EMV/ESD
  • Non-conductive sensors
  • Wireless and tool-free connection technology (click-mechanism)

more information »

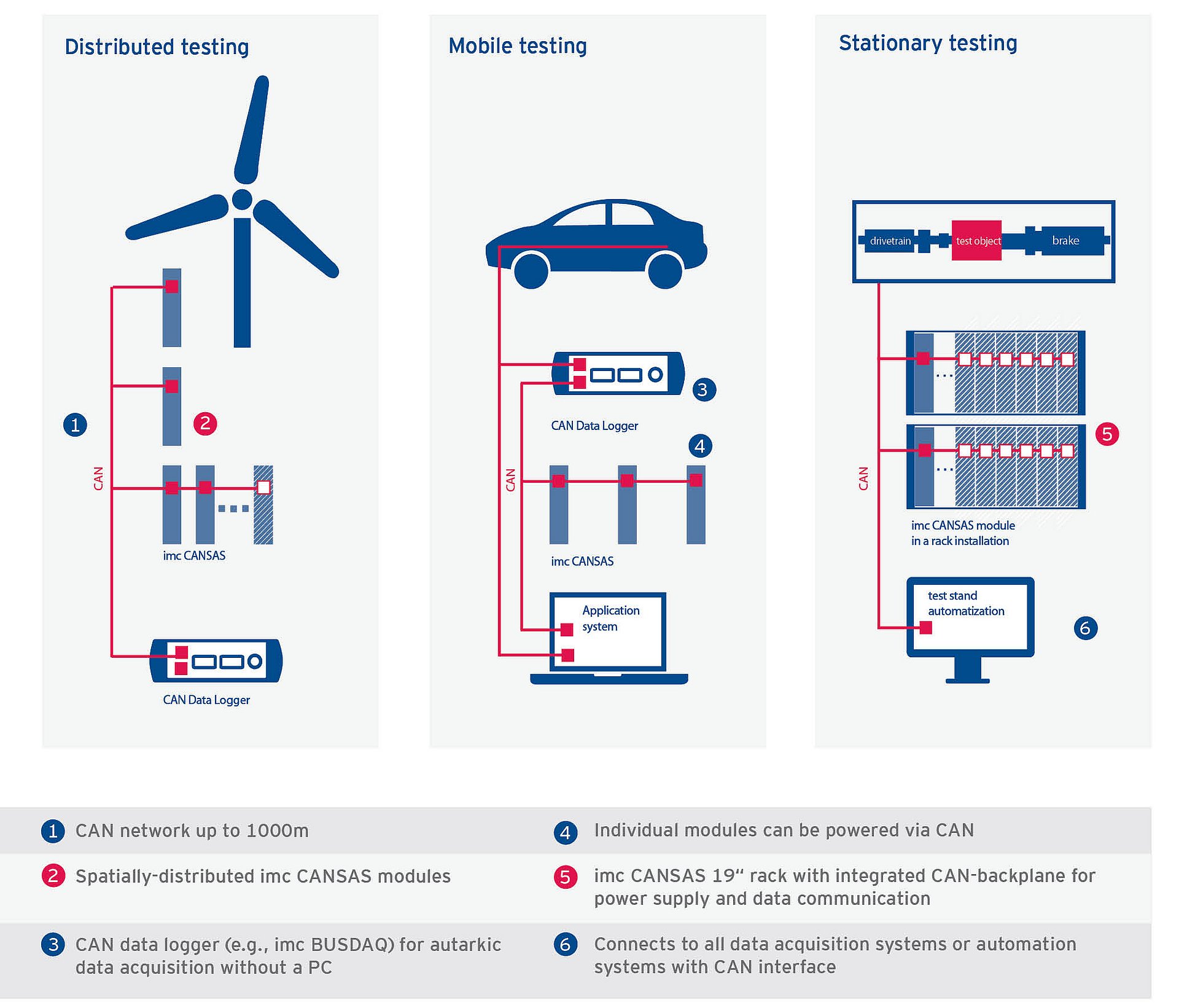

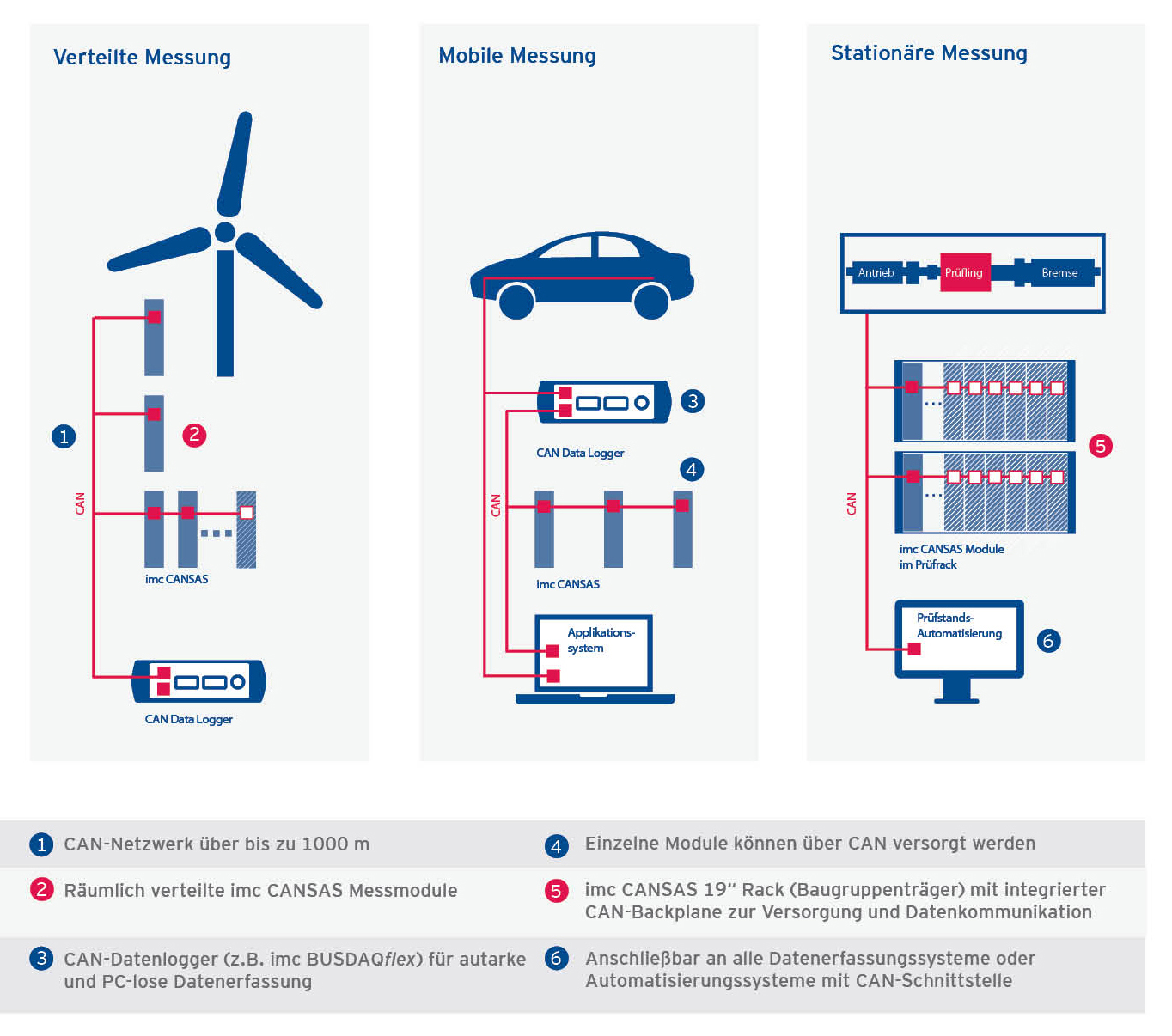

Ideal for distributed or centralized testing in mobile or stationary applications

Ideal for distributed or centralized testing in mobile or stationary applications
imc CANSAS - in practice

The modules can be installed in both a spatially-distributed arrangement or as a central unit. Combining modules couldn’t be easier: with the innovative imc click-mechanism, the modules are electrically and mechanically connected to each other – without the need for tools or cabling.
In test stands or factories, a centralized design of the measurement system is often desired. The imc CANSASflex modules can be inserted into a rack configuration or module holder. This automatically powers the module and connects it to the CAN bus. During operation, modules can be added or replaced. Thanks to integrated sensor recognition (TEDS), a secure sensor connection and flawless configuration are guaranteed.
