Productive in vehicle testing

imc CANSASfit robust measurement module for mobile applications
robust, compact CAN modules with click mechanism

Powerful measurement modules for mobile applications

Measurement modules used in the automotive industry must be robust and compact because they are often placed in areas such as the engine compartment where space is limited and temperatures can be high. The new imc CANSASfit series works reliably from -40° to +125° C, has a protection rating of IP65 and, due to their small form factor, can be placed almost anywhere.

The powerful modules for mobile applications enable direct connection of all typical signals such as voltage, current, temperature, rpm, distance and speed. The digitized measurement signals are output as CAN messages and can be read or recorded by any measurement, automation or control system with a CAN interface.

At a glance:

  • Measurement module for voltage/current, temperature, frequency
  • Operates from -40° to +125° C with condensation allowed
  • Robust housing with IP65 rating, MIL STD-810F
  • Click-mechanism connects modules electrically and mechanically into one unit
  • Central or distributed installation
  • Complete galvanic isolation
  • Measurement data output via CAN
  • Incl. configuration software

Request price quote

Click-mechanism for more comfort

Click-mechanism for more comfort

The imc CANSASfit series modules can be quickly connected using the click-mechanism: both mechanically and electrically. Blocks can easily be formed by simply clicking individual modules together without the use of wiring or fasteners.

Complement imc CANSAS modules with an imc data logger

Complement imc CANSAS modules with an imc data logger

imc CANSAS measurement modules are perfectly complemented with an imc data logger - for example with an imc CRONOScompact or imc imc BUSDAQ.These are well-suited for use in, e.g., control device development or ECU testing where real-time acquisition and calculating of vehicle or field bus data is needed.





Module overview

  UTI-6 T-10 ENC-6
Channel number 6 10 6
Sampling rate / channel 1000 Hz 100 Hz 1000 Hz
Bandwidth / channel 400 Hz 20 Hz 2 MHz
Galvanic isolation
Sensor supply
Input signals
Voltage
max. Voltage
60 V
Current 0 … 20mA
RTD
(PT100 … PT1000)
NTC, resistance
(5 ohm ... 100 kOhm)
Thermocouple
Frequency
Distance
Angle
Speed
RPM
Time
Socket
LEMO
Thermo
Key:  Default  Optional

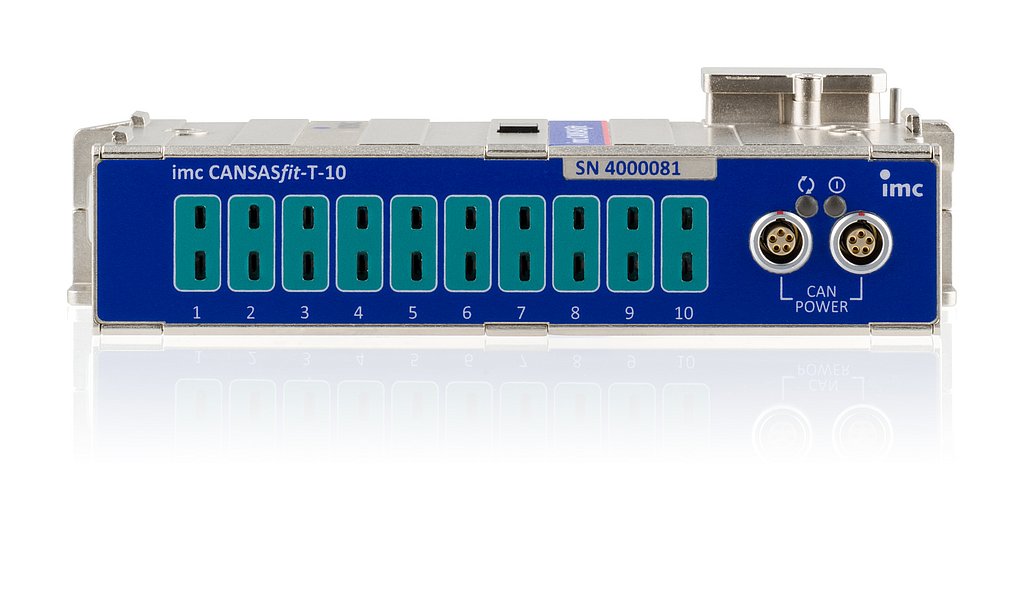

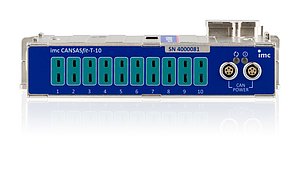

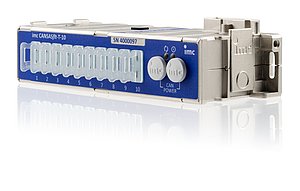

imc CANSASfit-T-10

temperature measurements: imc CANSASfit-T-10
imc CANSASfit-T-10
temperature measurements: imc CANSASfit-T-10
imc CANSASfit-T-10

10 channel module for measuring temperatures

The T-10 module from the imc CANSASfit series is a 10 channel module for measuring temperatures with thermocouples.

Highlights:

  • High temperature resistance
  • Module operating temperature: -40°C to 125°C
  • Robust housing
  • Small and compact design
  • Modules are connected mechanically and electrically with click-mechanism
  • 24 bit A/D convertor

Typical applications:

In mobile applications, measurements in the engine compartment, around high temperatures and harsh environments.

Technical Data Sheet imc CANSASfit-T-10

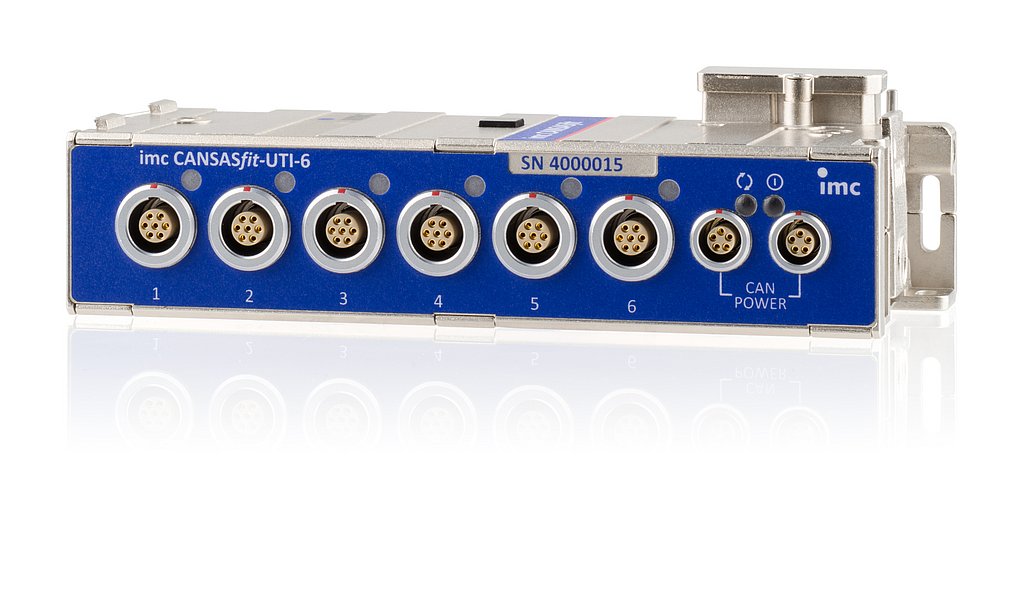

imc CANSASfit-UTI-6

measurement modules imc CANSASfit-UTI-6
imc CANSASfit-UTI-6
measurement modules imc CANSASfit-UTI-6
imc CANSASfit-UTI-6

6 channel measurement amplifier for voltage, current and temperature measurements

The UTI-6 from the imc CANSASfit series is a 6 channel measurement amplifier that acquires analog signals, digitizes them, then outputs them via CAN.

Measurement variables:

  • Voltage (25 mV to 60V)
  • Current (20mA sensors)
  • Temperature (PT100, PT1000, NTC)
  • Resistance

Features:

  • Per channel isolated measurement inputs, individual filter and ADCs
  • Adjustable sensor supply (e.g., for active voltage-fed sensors)
  • 400 Hz bandwidth with max. 1000 Hz sampling rate per channel
  • Measurement ranges and sampling rates can be set per channel in steps of 1, 2, 5
  • 24 bit A/D converter

Typical applications:

Robust measurement equipment for mobile use at high temperatures and in harsh environments. Ideal for vehicle and machinery testing where space is limited and conditions can be extreme, e.g., in the engine compartment.

  • General voltage signals, incl. vehicle on-board voltages (up to 60V) and current measurements on external shunts (up to 50 mV)
  • Active voltage-fed sensors
  • Industrial sensors (20mA) for different physical variables
  • Temperature measurements with resistance-based sensors (PTxx, NTC)

Technical Data Sheet imc CANSASfit-UTI-6

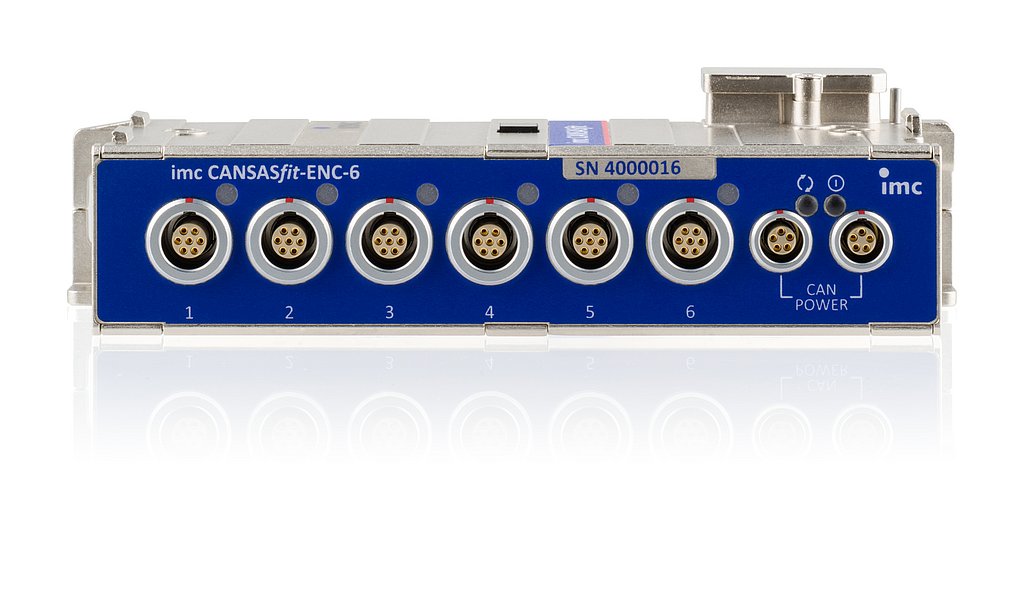

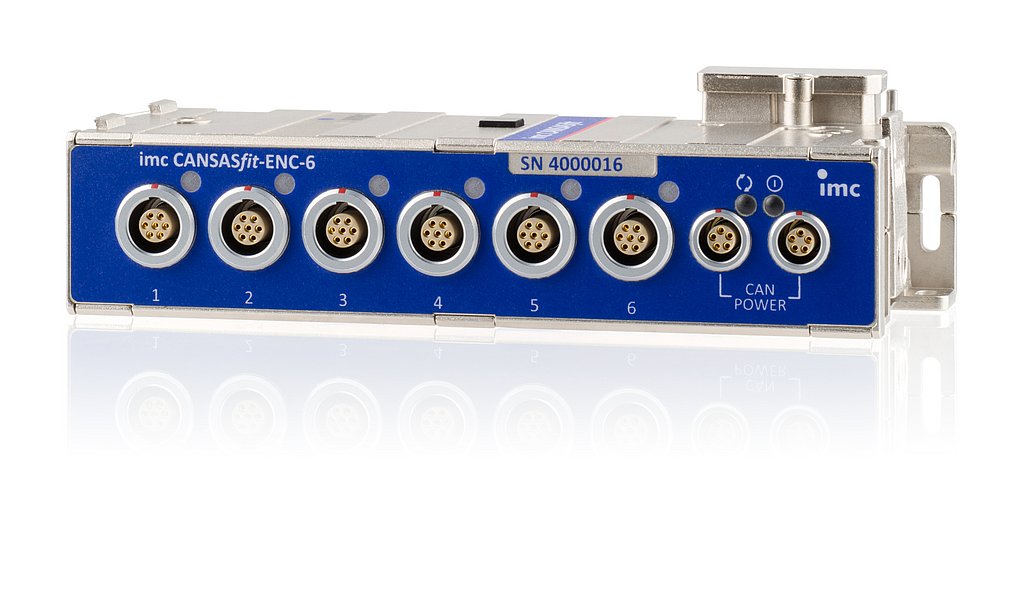

imc CANSASfit-ENC-6

measurement modules imc CANSASfit-ENC-6
imc CANSASfit-ENC-6
measurement modules imc CANSASfit-ENC-6
imc CANSASfit-ENC-6

Module for acquisition of frequency, rotation, position and angle counter signals

The ENC-6 module from the imc CANSASfit series offers 6 differential channels which can each be used for event counting, time measurement or a combination of event counting and time measurement. These operating modes enable capture of incremental counter sensors such as those used for measuring frequencies, RPM-values and velocities. The switching threshold and hysteresis are software configurable for the purpose of detecting events or impulses for incremental measurements.

Technical Data Sheet imc CANSASfit-ENC-6
