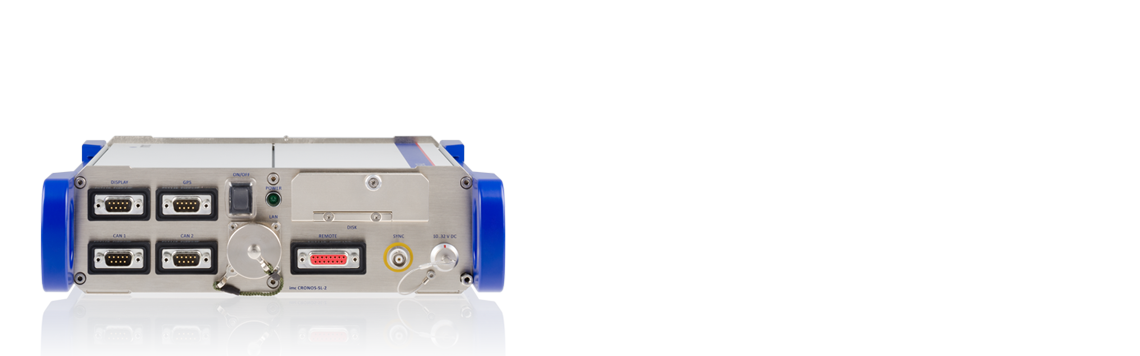

imc CRONOS-SL: Signal Conditioners

Configure your imc CRONOS-SL system to suit your needs. Choose from a wide range of available measurement amplifiers and modules.

Universal

 UNI2-8UNI4
Channels84
TEDSJaJa
Speed per Channel
Max Sampling Rate100 kHz100 kHz
Max Bandwidth48 kHz48 kHz
Voltage
Isolated Ja
Voltage up to 10 VJaJa
Voltage up to 50 VJaJa
Voltage up to 60 V
Current
20 mA Internal ShuntJaJa
20 mA Shunt PlugJaJa
Temperature
ThermocoupleJaJa
PT100JaJa
Bridge Mode
Full BridgeJaJa
Half BridgeJaJa
Quarter BridgeJaJa
DC ExcitationJaJa
AC Excitation (CF)
Audio and Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)
ICP Plugoptionaloptional
Miscellaneous
Sensor SupplyJaJa
Sensor Supply/Channel Ja

Voltage | Current | Temperature

 LV-16LV3-8SC2-32OSC-16OSC-16-2TC-8C-8-2TISO2-8ISO2-8-2TISOF-8
Channels16832161688888
TEDSJaJaJaJa Ja Ja
Speed per Channel
Max Sampling Rate20 kHz100 kHz100 kHz5 Hz5 Hz20 kHz20 kHz100 kHz100 kHz100 kHz
Max Bandwidth6,6 kHz48 kHz28 kHz1 Hz1 Hz20 Hz20 Hz11 kHz11 kHz48 kHz
Voltage
Isolated   JaJa  JaJaJa
Voltage up to 10 VJaJaJaJa Ja Ja Ja
Voltage up to 50 V Ja Ja Ja Ja Ja
Voltage up to 60        Ja  Ja
Current
20 mA Internal Shunt
20 mA Shunt PlugJaJaJaJaJaJaJaJa Ja
Temperature
Thermocouple   JaJaJaJaJaJaJa
PT100   Ja Ja Ja Ja
Bridge Mode
Full Bridge
Half Bridge
Quarter Bridge
DC Excitation
AC Excitation (CF)
Audio and Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)
ICP Plugoptionaloptionaloptional    optional
Miscellaneous
Sensor Suppyoptionaloptionaloptionaloptional optional optional  optional
Sensor Suppy/Channel

Strain Gauge

 UNI2-8UNI4DCB2-8
DCBC2-8B-8
BC-8BR2-4
Channels8488884
TEDSJaJaJaJaJaJaoptional
Speed per Channel
Max Sampling Rate100 kHz100 kHz100 kHz100 kHz100 kHz100 kHz100 kHz
Max Bandwidth48 kHz48 kHz5 kHz5 kHz48 kHz48 kHz14 kHz
Voltage
Isolated Ja
Voltage up to 10 VJaJaJaJaJaJaJa
Voltage up to 50 VJaJa
Voltage up to 60 V
Current
20 mA Internal ShuntJaJaJaJaJaJa
20 mA Shunt PlugJaJaJa Ja Ja
Temperature
ThermocoupleJaJa
PT100JaJa
Bridge Mode
Full BridgeJaJaJaJaJaJaJa
Half BridgeJaJaJaJaJaJaJa
Quarter BridgeJaJaJaJaJaJaJa
DC ExcitationJaJaJaJaJaJaJa
AC Excitation (CF)      Ja
Audio & Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)
ICP Plugoptionaloptionaloptional optional optional
Miscellaneous
Sensor SupplyJaJaJaJaJaJaJa
Sensor Supply/Channel Ja

Audio | Vibration

 ICPU2-8ICPU-16AUDIO-4AUDIO-4-MIC
Channels81644
TEDSJaJaJaJa
Speed per Channel
Max Sampling Rate100 kHz20 kHz100 kHz100 kHz
Max Bandwidth48 kHz6,6 kHz48 kHz48 kHz
Voltage
Isolated
Voltage up to 10 VJaJaJaJa
Voltage up to 50 VJa JaJa
Voltage up to 60 V
Current
20 mA Internal Shunt
20 mA Shunt Plug
Temperature
Thermocouple
PT100
Bridge Mode
Full Bridge
Half Bridge
Quarter Bridge
DC Excitation
AC Excitation (CF)
Audio & Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)JaJaJaJa
ICP Plug
Miscellaneous
Sensor Supply   Ja
Sensor Supply/Channel

DI | DO | AO

 DI16-DO8-ENC4DI8-DO8-ENC4-DAC4HRENC-4ENC-4DI2-16DO-16DAC-8SYNTH-8HIL
Digital Inputs/Outputs
Input Bits168  16
High Voltage
Output Bits88   16
High Current
Analog Outputs
Analog Outputs 4    88
Incremental Encoder
Inputs4444
Quadrature mode224
Counter Frequency32 MHz32 MHz256 MHz256 MHz
Analog sin/cos Mode  Ja
Real-Time Control & Regulation
Signal Generator (synthesizer)       Ja
PID-Regulator       8
Hardware-in-the-Loop (HiL)        Ja
MATLAB/Simulink Target Processor        Ja
