imc CRONOSflex: input modules

As part of the imc CRONOS family, the new imc CRONOSflex continues the tradition for supporting direct measurements of virtually any sensor available for mechanical, electromechanical, and mechatronic measurements. Multi-channel mixed signals, whether analog inputs, counters and incremental encoder inputs, or fieldbus based signals such as CAN-bus, GM LAN or LIN… you name it: imc CRONOSflex measures it.

Modular measurements
With up to 100kSps per channel, and now supporting up to 2 million samples per second throughput in each base unit, as well as having software configurable high precision signal conditioners and integrated sensor power supplies - the imc CRONOSflex can take on even the toughest data acquisition challenges, while performing at high precision under demanding environmental conditions.

The most striking feature of the imc CRONOSflex system is the imc Click Mechanism - you can add or remove signal-conditioned analog input channels from your imc CRONOSflex system in seconds by simply "clicking" a module on or off the stack. The module's rigid case and automatic recognition by the imc STUDIO software provide the ultimate in flexible modularity. Alternatively, the imc CRONOSflex Modules may be distributed, connected with the base unit or other satellite blocks via standard Ethernet cable.

As with all imc data acquisition system inputs, the imc CRONOSflex Modules integrate signal conditioning, analog filtering, high precision 24-bit digitizers, and digital signal processing. As such, a variety of modules are available from imc—from the general purpose universal 8-channel UNI2-8 module (CRFX/UNI2-8), to more measurement specific modules.

Universal

 UNI2-8UNI4
Channels84
TEDSJaJa
Speed per Channel
Max Sampling Rate100 kHz100 kHz
Max Bandwidth48 kHz48 kHz
Voltage Mode
Isolated Ja
Voltage up to 10 VJaJa
Voltage up to 50 V / 60 VJaJa
Isolation up to 800 V
Voltage up to 1000 V
Current
20 mA Internal ShuntJaJa
20 mA
Shunt Plug
JaJa
Temperaturee
Thermocouple (TC)JaJa
RTD (RTD (PT100))JaJa
Bridge Mode (DMS)
Full BridgeJaJa
Half BridgeJaJa
Quarter BridgeJaJa
DC ExcitationJaJa
AC Excitation (CF)
Audio and Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)
ICP Plugoptionaloptional
Charge
Charge Mode Integrated
Miscellaneous
Sensor SupplyJaJa
Sensor Supply / Channel Ja
Module Width  in mm6243
Key: Default Optional

Voltage | Current | Temperature

 LV3-8ISO2-8ISOF-8HISO-8-LHISO-8-T-8L/2LHV2-4UHV2-2U2I
Channels8888842+2
TEDSJaJaJa   Ja3
Speed per Channel
Max Sampling Rate100 kHz100 kHz100 kHz100 kHz100 kHz100 kHz100 kHz
Max Bandwidth48 kHz11 kHz48 kHz11 kHz100 Hz48 kHz48 kHz
Voltage
Isolation up to 60 V JaJaJaJaJaJa
Isolation up to 800 V   JaJaJaJa
Voltage up to 10 VJaJaJaJa JaJa
Voltage up to 50 V / 60 VJaJaJaJa JaJa
Voltage up to 1000 V     JaJa
Current
20 mA Internal Shunt   Ja
20 mA Shunt PlugJaJaJa
Temperature
Thermocouple JaJa Ja
PT100 JaJaJa
Bridge Mode (Strain gauge)
Full Bridge
Half Bridge
Quarter Bridge
DC Excitation
AC Excitation (CF)
Audio and Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)
ICP Plugoptionaloptionaloptional
Charge
Charge Mode Integrated
Miscellaneous
Sensor Supplyoptionaloptionaloptional
Sensor Supply / Channel
Module Width in mm43434382828282



Strain Gauges

 DCB2-8
DCBC2-8B-8
BC-8BR2-4
Channels8  88 8  4
TEDS Ja  Ja  Ja
Speed per Channel
Max Sampling Rate100 kHz100 kHz100 kHz100 kHz100 kHz
Max Bandwidth5 kHz5 kHz48 kHz48 kHz14 kHz
Voltage Mode
Isolated
Voltage up to 10 VJaJaJaJaJa
Voltage up to 50 V / 60 V     Ja
Isolation up to 800 V
Voltage up to 1000 V
Current
20 mA Internal ShuntJaJaJaJa
20 mA Shunt PlugJaJaJa JaJa
Temperature
Thermocouple (TC)
RTD (PT100)
Bridge Mode (DMS)
Full BridgeJaJaJaJaJa
Half BridgeJaJaJaJaJa
Quarter BridgeJaJaJaJaJa
DC ExcitationJaJaJaJaJa
AC Excitation (CF)    Ja
Audio and Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)
ICP Plugoptional optional optional
Charge
Charge Mode Integrated
Miscellaneous
Sensor SupplyJaJaJaJaJa
Sensor Supply / Channel
Module Width in mm6243624343

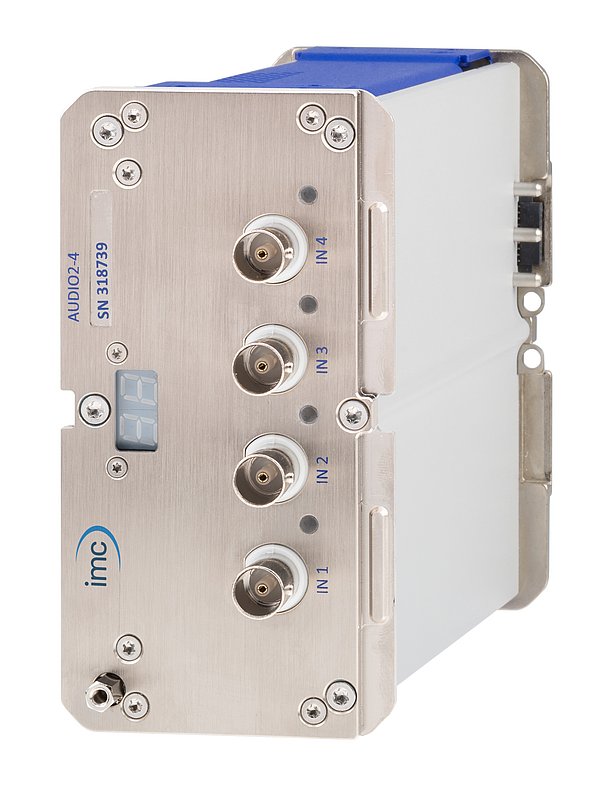

Audio & Vibration

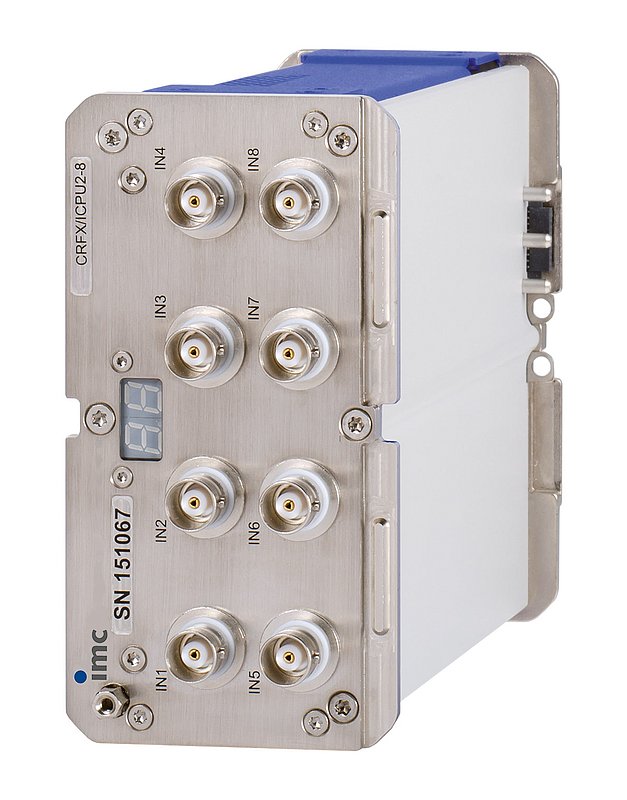

 ICPU2-8AUDIO2-4AUDIO2-4-MICQI-4
Channels8444
TEDSJaJaJaJa
Speed per Channel
Max Sampling Rate100 kHz100 kHz100 kHz100 kHz
Max Bandwidth48 kHz48 kHz48 kHz48 kHz
Voltage Mode
Isolated JaJaJa
Voltage up to 10 VJaJaJaJa
Voltage up to 50 V / 60 VJaJaJaJa
Isolation up to 800 V
Voltage up to 1000 V
Current
20 mA Internal Shunt
20 mA Shunt Plug
Temperature
Thermocouple (TC)
RTD (PT100)
Bridge Mode (DMS)
Full Bridge
Half Bridge
Quarter Bridge
DC Excitation
AC Excitation (CF)
Audio and Vibration
IEPE Mode Integrated (ICP-, DeltaTron-, PiezoTron)JaJaJaJa
ICP Plug
Charge
Charge Mode Integrated   Ja
Miscellaneous
Sensor Supply  Ja
Sensor Supply / Channel
Module Width in mm62626262

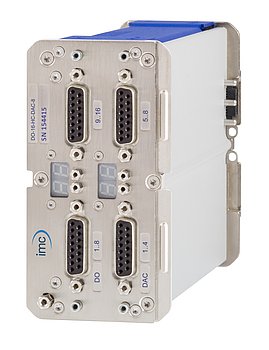

DI | DO | AO

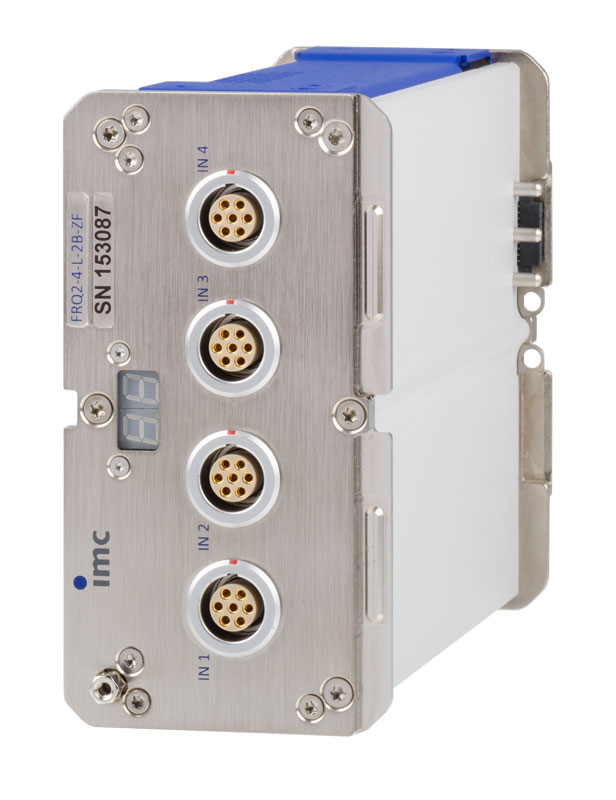

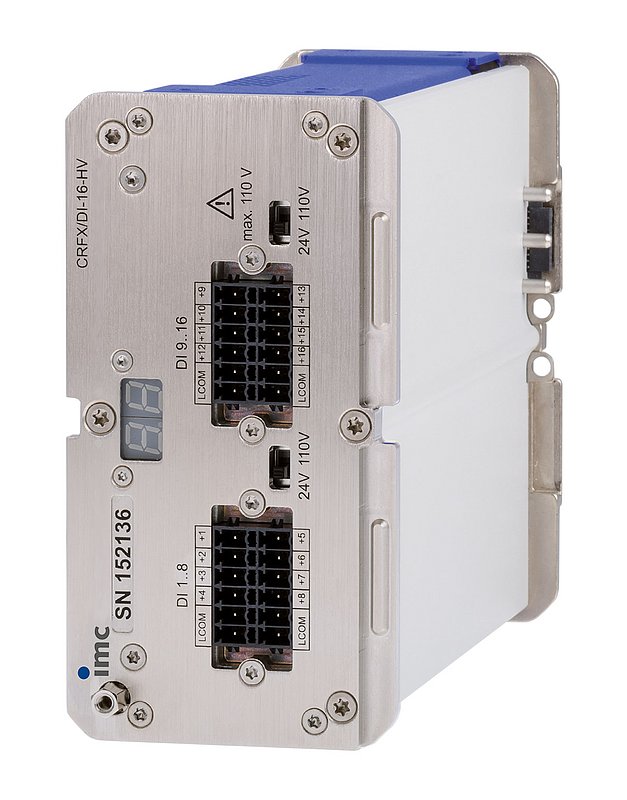

 DI16-DO8-ENC4DI8-DO8-ENC4-DAC4HRENC-4FRQ2-4DI2-16DI2-32DI-16-HV (110V)DO-16-HCDO-32-HCDI2-16-DO-16-HCDO-16-HC-DAC-8DAC-8
Module type
Integrated intothe base unitJaJa
flex-Module  JaJaJaJaJaJaJaJaJaJa
Digital Inputs/Outputs
Input Bits168  163216  16
High Voltage      Ja
Output Bits88     16321616
High Current       JaJaJaJa
Analog Outputs
Analog Outputs 4        88
Incremental Encoder
Inputs4444
Quadrature Mode224
Counter Frequency32 MHz32 MHz256 MHz256 MHz
Analog sin/cos Mode  Ja
Size
Width+40 mm+ 40 mm1112112221

Sensor Systems

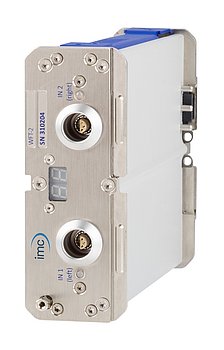

WFT-2

Interface module for two caemax WFT wheel force transducers

The WFT-2 is an imc CRONOSflex module for acquiring sensor data from two WFT-Cx wheel force transducers. The caemax WFTs are high-precision sensor systems which are used in vehicle development in order to record forces and torques acting on the wheels. These measurement results are usually used as the basis for simulation, design verification and load profiles for test rig systems.

Highlights:

  • Power supply for the WFT sensor system
  • Robust, digital data interface, highly immune to interference with exact synchronization of the WFT sensor system
  • All resulting measurement channels (forces and torques in x, y, z) are available as standard measurement channels in the CRFX system.
  • Full support of configuration, calibration and zeroing by imc STUDIO software
  • Up to six wheel force transducers (three WFT-2 modules) can be operated in one imc CRONOSflex system, so that all conceivable applications on vehicles with up to three axles can be covered
  • Compact, integrated and comprehensive solution based on imc CRONOSflex - no additional equipment or software required

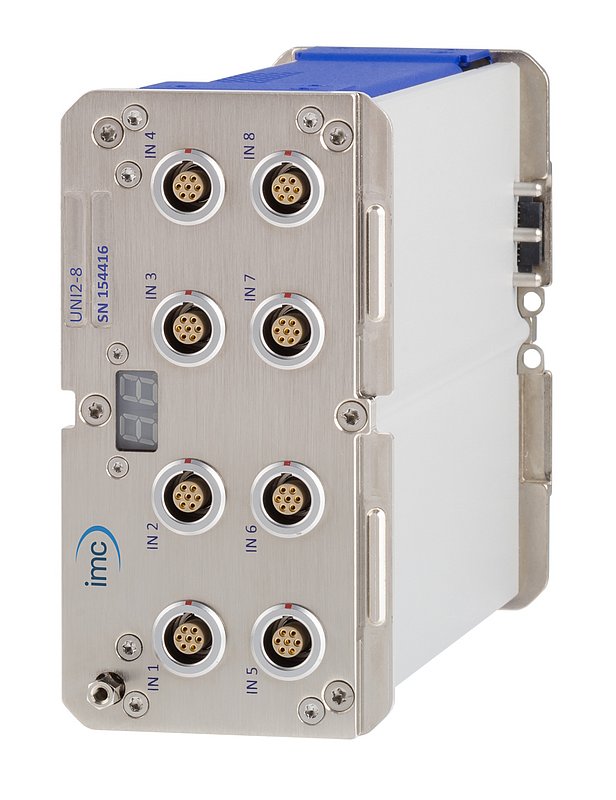

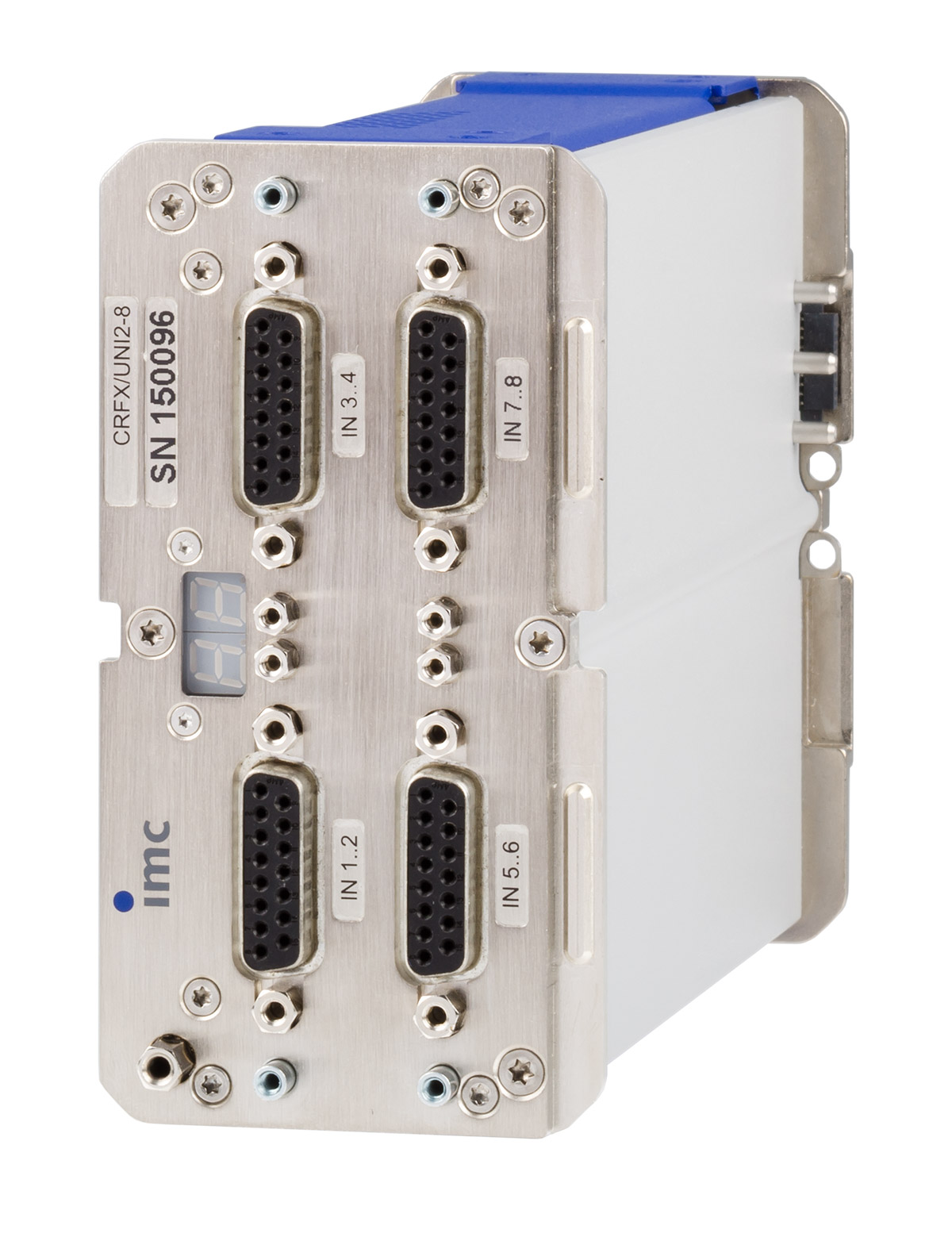

UNI2-8

8-channel, high-performance universal measurement amplifier

The UNI2-8 is a universal measurement amplifier. With 8 differential analog inputs, it is capable of measuring:

  • Voltage and current (20 mA)
  • Temperature (thermocouple and PT100)
  • Bridge and strain gauge (quarter-, half- and full-bridge)
  • IEPE/ICP sensors (via the optional DSUB terminal connector)

For powering external sensors or bridge measurements, a software selectable (2.5 V to 24 V) sensor supply is integrated.

Highlights:

  • An amplifier for all relevant measurement quantities
  • Very high signal bandwidth of up to 48 kHz
  • Finely adjustable input voltage range (±5 mV to ±50 V)
  • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
  • Graphical configuration wizard to set strain gauge bridges
  • Software selectable quarter-bridge completion 120 and 350 Ω
  • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451)

Typical applications: Provides maximum flexibility for changing measurement and sensor requirements.

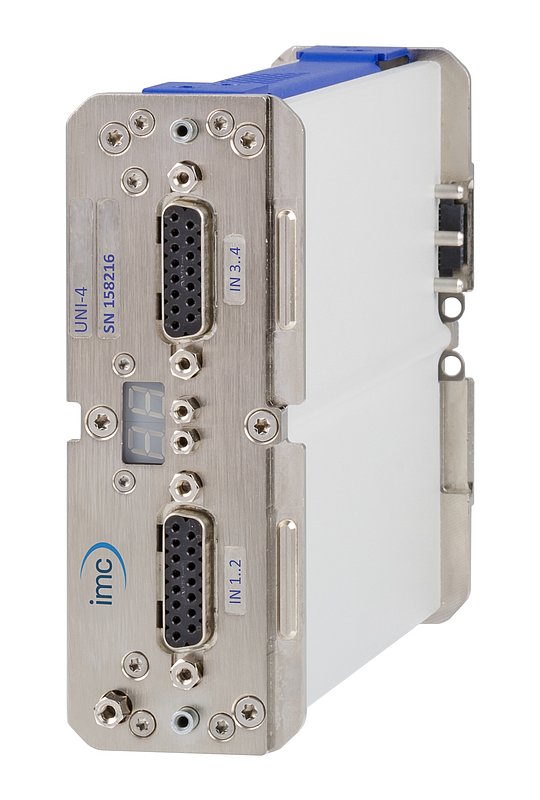

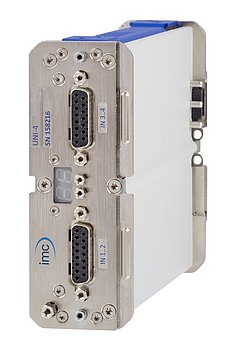

UNI-4

4-channel, high-performance universal measurement amplifier

The UNI-4 is the most universal measurement amplifier in the portfolio. With 4 differential analog inputs, it is capable of measuring:

  • Voltage and current (isolated measurement)
  • Temperature (thermocouple, isolated measurements)
  • PT100, PT1000
  • Bridge and strain gauge (quarter-, half- and full-bridge)
  • IEPE/ICP sensors (via the optional DSUB terminal connector)

Channel-wise, independently configurable supply voltages (non-isolated) between 0.25 V to 24 V are available for supplying external sensors or bridge measurements.
The channels are individually, galvanically-isolated for voltage, current and thermocouple measurements. Each channel is equipped with its own simultaneous A/D converter and adjustable filter (e.g., anti-aliasing filter).

Highlights:

  • Individual, galvanically-isolated measurement of voltage, current and thermocouples
  • Channel-wise, individually configurable sensor and bridge supply
  • PT100 and PT1000 supported
  • High signal bandwidth of up to 48 kHz
  • Internal quarter-bridge completion of 120, 350 and 1 kΩ
  • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451)

Typical applications: Provides maximum flexibility for changing measurement and sensor requirements, including channel-wise, individual sensor supplies.


    LV3-8

    8-channel differential measurement amplifier

    The LV3-8 is a differential measurement amplifier with 8 channels for measuring:

    • Voltage and current (20 mA)
    • IEPE/ICP sensors (with optional DSUB terminal connector)

    Highlights:

    • Economical, high-resolution measuring of current and voltage
    • Finely adjustable input voltage range (±5 mV to ±50 V)
    • High signal bandwidth up to 48 kHz
    • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

    Typical applications: Ideally suited for measurements of signals, voltage-based sensors, as well as 20 mA process variables with higher bandwidths.


    [Translate to Netherlands (en):]

    8-channel, isolated differential measurement amplifier

    The ISO2-8 is an isolated, differential measurement amplifier with 8 galvanically-separated, floating channels for high-precision measuring:

    • Voltage and current (20 mA)
    • Temperature (thermocouples and PT100)
    • ICP sensors (with optional DSUB terminal connector)

    Highlights:

    • Channel-wise isolated, galvanically-separated inputs
    • Finely adjustable input voltage range (±5 mV to ±50 V)
    • High signal bandwidth up to 11 kHz
    • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

    Typical applications: Ideally suited for measurements with unclear potential conditions such as in-vehicle or in the railway sector.

    ISO2-8

    8-channel, isolated differential measurement amplifier

    The ISO2-8 is an isolated, differential measurement amplifier with 8 galvanically-separated, floating channels for high-precision measuring:

    • Voltage and current (20 mA)
    • Temperature (thermocouples and PT100)
    • IEPE/ICP sensors (with optional DSUB terminal connector)

    Highlights:

    • Channel-wise isolated, galvanically-separated inputs
    • Finely adjustable input voltage range (±5 mV to ±50 V)
    • High signal bandwidth up to 11 kHz
    • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

    Typical applications: Ideally suited for measurements with unclear potential conditions such as in-vehicle or in the railway sector.


    ISOF-8

    8-channel, faster and isolated differential amplifier

    The ISOF-8 is an isolated differential measurement amplifier with 8 galvanically-isolated channels for highly accurate measurements of:

    • Voltage and current (20 mA)
    • Temperature (Thermocouple and PT100)
    • IEPE/ICP sensors (with optional DSUB terminal connector)

    Highlights:

    • Channel-wise isolated, galvanically-separated inputs
    • Finely adjustable input voltage range (from ±50 mV to ±60 V)
    • High signal bandwidth up to 48 kHz
    • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

    Typical Applications: Ideally suited for measurements with unclear potential conditions such as in-vehicle or in the railway sector with higher bandwidths.

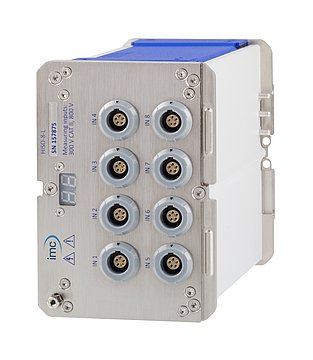

    HISO-8

    The HISO-8 is an isolated, differential measurement amplifier with 8 analog inputs for measuring small voltage signals with high common mode isolation up to 800 V. The following signals and sensors are supported, depending on the chosen variant:

    • Voltage (±50 mV to ±60 V)
    • Current (20 mA)
    • PT100, PT1000 temperature sensors
    • Thermocouple

    Highlights:

    • Channel-wise isolated, galvanically-separated inputs
    • High common mode isolation up to 800 V
    • Overvoltage protection ±600 V (differential)
    • High signal bandwidth of up to 11 kHz
    • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter

    Typical applications:

    • Testing in e-mobility environments (e.g., electric and hybrid vehicles)
    • Tests where full personal safety must be guaranteed even in case of hazards
    • Measurements on high-voltage components, such as batteries, power electronics components and power supply circuits; low-voltages, including signals on external current measurement shunts

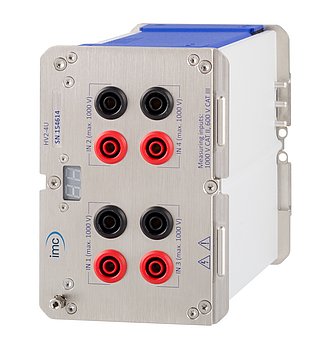

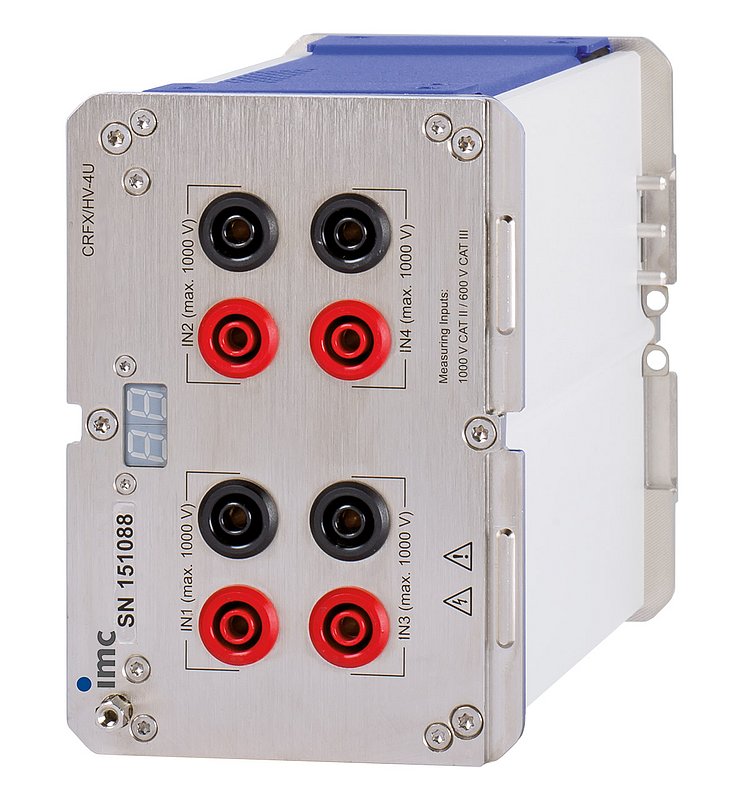

    HV2-4U

    4-channel module for measurement of high voltages

    With the 4-channel HV2-4U measurement amplifier, high voltages of up to 1000 V can be measured.
    The imc CRONOSflex High Voltage input module (CRFX/HV2-4U) is ideally suited for isolated measurements of high voltage signals up to ±1000 V, as encountered in power quality monitoring and power efficiency analysis of electrical drive systems or hybrid vehicles.

    Highlights:

    • Measurement of voltages of up to 600 VRMS (CAT III) / 1000 VRMS (CAT II)
    • 48 kHz analog bandwidth (-3 dB)
    • Phase accuracy better than 1° for measurements of up to the 50th harmonic of 50/60 Hz line voltage
    • Input ranges from ±1000 V to ±2.5 V, selectable per channel

    Typical applications: Ideal for power measurements, electric motor measurements, batteries, fuel cells, etc.

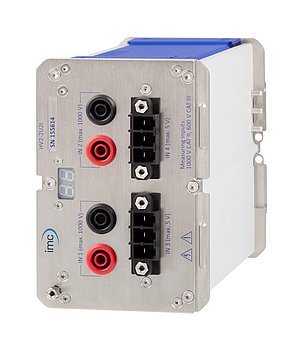

    HV2-2U2I

    4-Channel module for the measurement of high voltage and current

    With the HV2-2U2I four-channel amplifier, two channels can be used for measuring voltages up to 1000 V, and two channels are available to measure with current probes.

    Highlights:

    • Measurement of voltages of up to 600 VRMS (CAT III) / 1000 VRMS (CAT II)
    • 48 kHz analog bandwidth
    • Analog bandwidth allows for measurements of up to the 50th harmonic
    • Acquisition with current probes or low voltages possible
    • Direct support for use of Rogowski coils
    • Amplitude response for current probes are stored in TEDS and taken into account in the measurement

    Typical Applications: Ideal for power measurements, electric motors measurements, batteries, fuel cells, etc.

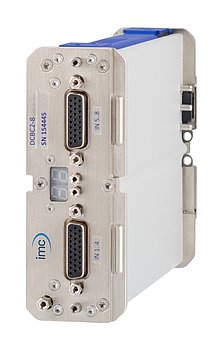

    DCB2-8 & DCBC2-8

    8-channel bridge measurement amplifier for multi-channel strain gauge applications with medium bandwidth

    The DCB(C)2-8 is an economical DC bridge amplifier. With 8 differential analog inputs, it allows the measurement of:

    • Voltage and current (20 mA)
    • Stain gauges, bridge sensors
    • IEPE/ICP sensors (with optional DSUB terminal connector)

    For powering external sensors or bridge measurements, a software selectable sensor supply is integrated.

    Highlights:

    • Medium signal bandwidths of up to 5 kHz
    • Sensor supply with adjustable voltage supply
    • Software selectable quarter-bridge completion between 120 and 350 Ω
    • Graphical configuration wizard to set strain gauge bridges
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))
    • Also available with compact, high-density DSUB terminal connections (variant "C")

    Typical applications: strain gauge measurements, load cells, pressure sensors, universal voltage measurements.


    B-8 & BC-8

    8-channel bridge measurement  amplifier for multi-channel, dynamic strain gauge applications

    The B(C)-8 is a DC bridge amplifier with 8 differential analog inputs of higher bandwidths allowing the measurement of:

    • Voltage and current (20 mA)
    • Stain gauges, bridge sensors
    • IEPE/ICP sensors (with optional DSUB terminal connector)

    For powering external sensors or bridge measurements, a software selectable sensor supply is integrated.

    Highlights:

    • Very high signal bandwidth of up to 48 kHz
    • Software selectable quarter-bridge completion between 120 and 350 Ω
    • Graphical configuration wizard to set strain gauge bridges
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))
    • Also available with compact, high-density DSUB terminal connections (variant "C")

    Typical applications: strain gauge measurements, load cells, pressure sensors, universal voltage measurements with higher bandwidths.


    BR2-4

    4-channel, high-performance bridge measurement amplifier

    The BR2-4 is a universal DC and CF bridge measurement amplifier for 4 channels and can also be used as a DC differential amplifier. It is capable of measuring:

    • 4 strain gauges, with selectable DC or CF (AC) excitation
    • LVDT
    • Voltage and current (20 mA)
    • IEPE/ICP sensors (with optional DSUB terminal connector)

    Highlights:

    • Carrier frequency excitation (5 kHz) for bridges and LVDT
    • Single and dual sense line configurations are supported (e.g., 5/6-wire connection with full-bridge)
    • Symmetric bridge supply of 1 V, 2.5 V, 5 V and with DC, as well as CF (AC) mode
    • Broken wire detection
    • Integrated calibration resistor for shunt calibration
    • Software selectable quarter-bridge completion 120 and 350 Ω
    • Graphical configuration wizard to set strain gauge bridges

    Typical applications: Ideal for bridge measurements in CF mode with elevated requirements for noise suppression and stability, as well as LVDT and inductive displacement sensors.


    ICPU2-8

    8-channel ICP-measurement amplifier

    The ICPU2-8 is a broadband measurement amplifier for the measurement of:

    • IEPE/ICP sensors (current-fed 4 mA)
    • Voltage (AC and DC coupling)

    Direct connection of ICP-compatible sensors (ICP™, DELTATRON®, PIEZOTRON® sensors) takes place via BNC connectors.

    Highlights:

    • High signal bandwidth of up to 48 kHz
    • Finely adjustable input voltage range (from ±5 mV to ±50 V)
    • Input coupling switchable via software: DC, AC, AC with current supply
    • Each channel with its own adjustable filter (e.g., anti-aliasing filter) and simultaneous A/D converter
    • Supports imc Plug & Measure conforming to IEEE 1451.4 (Class I mixed mode interface)

    Typical applications: Ideal for noise and vibration analysis and acceleration measurements.


    AUDIO2-4 & AUDIO2-4-MIC

    4-channel audio measurement module

    The AUDIO2-4 measurement module has four individual, galvanically-isolated channels for the acquisition of:

    • IEPE/ICP sensors (current-fed 4 mA)
    • Voltage (AC and DC coupling)

    Direct connection of ICP-compatible sensors (ICP®, Deltatron®, Piezotron® sensors) takes place via BNC connectors.

    Highlights:

    • Per-channel galvanic isolation
    • Robust and feedback-free signal acquisition
    • Signal bandwidth 48 kHz
    • Large signal-to-noise ratio (-110 dB SNR)
    • Low signal distortion (-115 dB THD)
    • High-precision measurements over broad voltage ranges
    • Supports imc Plug & Measure conforming to IEEE 1451.4 (Class I mixed mode interface). Optional supply unit for a condenser microphone available (AUDIO2-4-MIC)

    Typical applications: Ideal for noise measurements, noise and vibration analysis and measuring acceleration.


    QI-4

    The QI-4 is a 4 channel, individually isolated charge amplifier. For each channel, two parallel BNC inputs are provided for charge or ICP and voltage measurements. It is capable for measuring:

    • Quasi-static and dynamic charges
    • Piezoelectric sensors
    • Current-fed IEPE sensors (ICP®, Deltatron®, Piezotron®)
    • Voltage (AC and DC coupling)

    Highlights:

    • Charge measurement with low drift over time, for quasi-static measurements
    • Per-channel galvanic isolation
    • Special, high-isolated, low leakage current charge inputs
    • Signal bandwidth 48 kHz
    • High Signal-to-Noise ratio (-110 dB SNR)
    • Low signal distortion (-115 dB THD)
    • Broken wire detection in measurement mode "AC with current fed"
    • As an alternative to the standard BNC connectors, triaxial connectors are available
    • Supports imc Plug & Measure (Transducer Electronic Data Sheets (IEEE 1451))

    Typical applications: Ideal when using charge sensors in extreme environmental conditions (temperature, radioactivity, pressure, etc.); measurement of forces, pressures, accelerations – e.g., motor indexing on vehicle test benches; detection of vibrations and noises, acoustic emission analysis.


    HRENC-4

    The imc CRONOSflex Module (CRFX/HRENC-4) serves to measure signals whose time- or frequency information is to be captured. In contrast to the case with analog channels, to actual measurement
    does not consist of repeated sampling at a fixed time interval. Instead, digital counters are used to determine either the count of pulses occurring or the time intervals between defined signal slope
    events. For the time measurement/ maximum frequency, a resolution of approx. 3.9 ns (256MHz) is achieved. When using two-track sine/cosine signal encoders, conversion to digital values for determining the rotation direction and the absolute count of increments (full periods) is performed. Additionally, detailed information about the position can be gained by analog evaluation of
    the sine/ cosine signal, which results in yet further increased resolution.

    Highlights

    • The HRENC-4 is both a digital comparator and serves the purposeof analog evaluation (sine / cosine signals).
    • Fully conditioned (differential input and filter)
    • 256MHz measurement time resolution
    • Feedback of revolution speed etc. to precise time measurement

    FRQ2-4

    This amplifier is especially designed for sensors that are able to convert electrical, physical dimensions in frequency. These sensors spent in a "state of rest" (input parameter = 0) a frequency not equal
    zero. The physical dimension combined with the scaling factor has to be entered into the basis card.
    By means of taring in the dialog 'amplifier adjustment' this state of rest is tared as a zero position. Frequencies that are smaller than that state of rest will be notified as negative physical values.


    DIO modules for digital signal and control applications

    This family of modules provides in- and output of digital signals and extend imc CRONOSflex systems with the capability to control measurement environments such as test stands. The digital inputs (DI2-xx) allow sampling of digital signals having TTL/CMOS or 24 V logic levels.

    Highlights DI2-xx

    • Galvanically-isolated 4 Bit groups
    • Configurable for 5 V or 24 V level (of 8 Bit groups)

    The digital outputs (DO-xx-HC) provide isolated control signals with high output current capabilities. The signals' states can be generated by imc Online FAMOS as the result of live calculations or be assigned to states of the trigger machine.

    Highlights DO-xx-HC

    • Galvanically-isolated 8 Bit groups
    • Compatible with 5 V and 24 V Volt output level
    • Configurable driver modes (Open Drain / Open Source / Totem Pole)
    • 0.7 A / Bit drive current (sink and source)

    16-channel modules provide 16 Bit of the same type (DI or DO).

    32-channel modules can be chosen as pure DO or DI type modules or as a combined one (16+16). Those modules are implemented as "Double-modules" acting as two logical modules with their respective IDs displayed on two 7-segment displays.


    16 digital input for high voltage (110 V / 24 V)

    This imc CRONOSflex Module (CRFX/DI-16-HV) is equipped with digital inputs that can sample signals conforming to either 24 V or 110 V logic standards. The connection is realized via 4 terminal blocks of 4 bits each. The logic standard of each group of 8 Bit can be set via a switch.

    Highlights

    • Isolated 4 Bit groups
    • Input level is configurable

    Modules providing control and actuating outputs for control applications

    This family of modules provides output of analog control and actuator signals on 8 channels. The outputs can be defined as the results of live calculations performed by imc Online FAMOS on combinations of measurement channels.

    Highlights DAC

    • ±10 V output voltage levels with max. ±10 mA drive current
    • Ensured startup level 0 V without undefined transient states
    • Short-circuit proof against ground
    • Up to 5 kHz output rate



    Besides this DAC module there is a combined "Double-Module" with additional 16 digital outputs (DO-16-HC) available. The digital outputs provide isolated control signals with high output current capabilities. The signals' states can be generated by imc Online FAMOS as the result of live calculations or be assigned to states of the trigger machine.

    Highlights DO-16-HC

    • Galvanically-isolated 8 Bit groups
    • Compatible with 5 V and 24 V Volt output level
    • Configurable driver modes (Open Drain / Open Source / Totem Pole)
    • 0.7 A / Bit drive current (sink and source)

    This "Double-Module" acts as two logical modules with their respective IDs displayed on two 7-segment displays.
